AC Fire Resistant Grommets 1

AC Fire Resistant Grommets

by AC Cable
Description

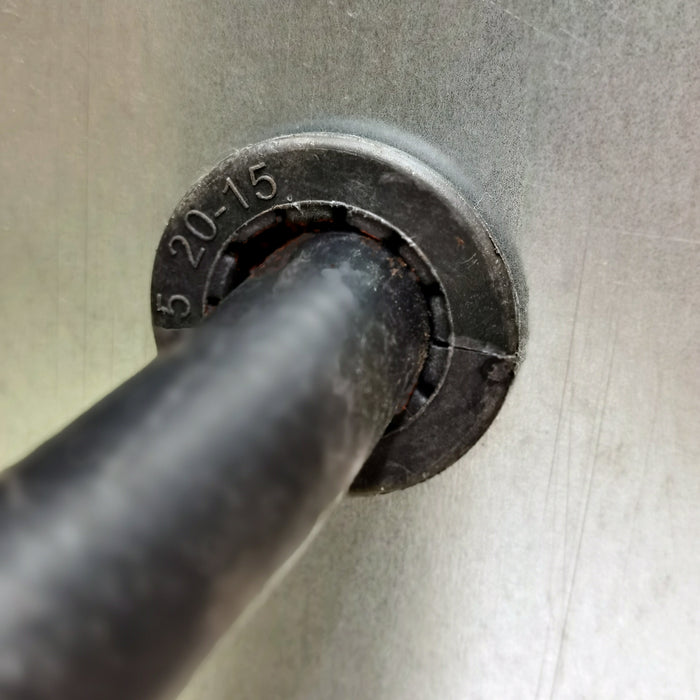

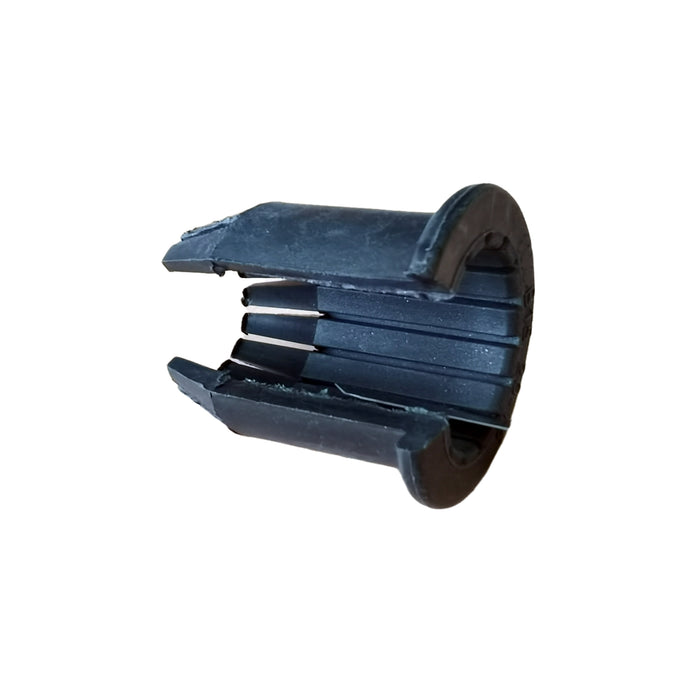

AC’s range of Fire-retardant grommets are for the safe closure of small penetrations in fire-protection walls & B15 class bulkheads onboard ships. AC Fire resistant grommets provide fire-stopping for individual and small bundles of cables through fire-rated B15 bulkheads on board ships, solid or partition walls. The device is moulded from a specially formulated intumescent rubber that expands when in contact with heat, closing and sealing any open spaces around the cable.

Part No. Description
 Max. Opening Cable Range
AC100-14/8
 Fire Sealing
Grommet 14/8
 22mm 8mm-4mm
AC100-20/15 Fire Sealing
Grommet 20/15		 28mm
 15mm-20mm



Features
  • Secure, visible, certified fire sealings to MO 2010 FTP Code Part 3 for B15 bulkheads
  • For wall feed-throughs and entries
  • Prevents the cable from being damaged by the panel board.
  • No additional sealants are required.
  • Can be installed retrospectively.
  • 2 sizes available (larger sizes available on request)

Applications Include:

  • Digital TV cables within multi-dwelling buildings
  • Alarm and security system cables
  • Data and fibre optic cables
  • Power cables
